Eight Channel ADC Platform Atlas Baseboard


Features

  • Size 10 x 12.7 cm (~4″ x 5″)
  • Atlas-I or Atlas-II system-on-a-module site
  • Eight channels of 14-bit analog-to-digital conversion at up to 125 MSPS per channel
  • Gigabit Ethernet port with ability to stream directly to/from programmable logic
  • 10 Gigabit Ethernet interface (Atlas-II Only)
  • Flexible ADC sampling rates using on-board clock generator
  • On-board GPS device with precision timing solution (optional)
  • On-board WiFi device (optional)

Specifications

  • Atlas-I or Atlas-II module site
  • Eight channels of 14-bit analog-to-digital conversion at up to 125 MSPS per channel
  • Flexible ADC sampling rates using on-board clock generator
  • Gigabit Ethernet interface through standard RJ-45 jack

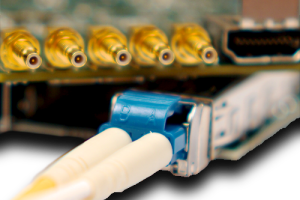

  • SFP+ Module interface that supports 10 Gigabit Ethernet or additional Gigabit Ethernet interface (Atlas-II Only)
  • USB 2.0 On-the-Go port capable of powering devices up to 500mA
  • On-board WiFi device (optional)
  • On-board GPS device with precision timing solution (optional)
  • Clock generator source can be soft selected from on-board 10 MHz TCXO, external clock, or GPS reference clock
  • Battery-backed real-time clock
  • External 1 PPS, IRIG-B, or general-purpose signal input
  • Two factory-settable 2A power supplies for follow-on equipment, default voltages of 3.6V and 5.6V
  • Five volt power up to 500mA available for follow-on equipment
  • Console support through on-board USB-to-serial device
  • I/O Expansion Header connected to Atlas Bank D (Atlas-II only)
  • Two general-purpose UARTs, optionally TTL (3.3V) or RS-232 levels
  • Ten general-purpose logic-level I/O (6 to FPGA and 4 to I/O expander)
  • Line-level analog audio out (Atlas-I only)
  • JTAG connector for connecting directly to Xilinx Platform USB cable (requires iVeia JTAG cable adapter)
  • Multi-color LED driver for optional connection to bulkhead mounted LED
  • Power path controller with external power on/off control
  • Wide input power range of 9 to 30 VDC

The Blue Point Atlas Baseboard provides eight channels of analog-to-digital conversion (ADC) to an Atlas-I or Atlas-II system-on-a-module. The eight ADCs are each capable of sampling up to 125 MSPS at a resolution of 14 bits. The sample rate of the ADC is soft programmable through a clock generator whose input clock source may be an on-board TCXO oscillator, an external input, or from an optional on-board GPS device with precision time outputs.
